Eplan Cable proD

Software for efficient machine cabling

Eplan Cable proD: Plug & play for cables

Eplan Cable proD is a solution for quick and easy cabling of machines. The software digitises the corresponding designs and provides the information required for production and assembly. This means that prefabricated cables can also be used. 

Precision is required when constructing machines – all the way through to the final steps: if the cables don’t have the correct lengths or have been incorrectly routed, it is not uncommon for entire commissioning processes to have to be postponed.

Eplan has therefore dedicated an entire software solution for planning the corresponding machine cabling: Eplan Cable proD. This also makes it easy to order prefabricated cables. Time-consuming trimming and offcuts are now a thing of the past. 

Your added value for machine cabling

Foresight
Teamwork
Simplification
Improvement
Transparency

Determine cable lengths early on

The routing path and thus the length of the cable is determined on the digital model of the machine during the engineering phase, meaning that the space required for cabling has already been determined at this early stage of the process.

Include different disciplines

The requirements for the electrical engineering are visualised in the MCAD model, thereby ensuring that the cables can be installed as planned.

Easier ordering

Ordering the proper prefabricated cables is made easier because all the information has been collected in one place. The engineering results include the length along with the exact routing and connection assignments.

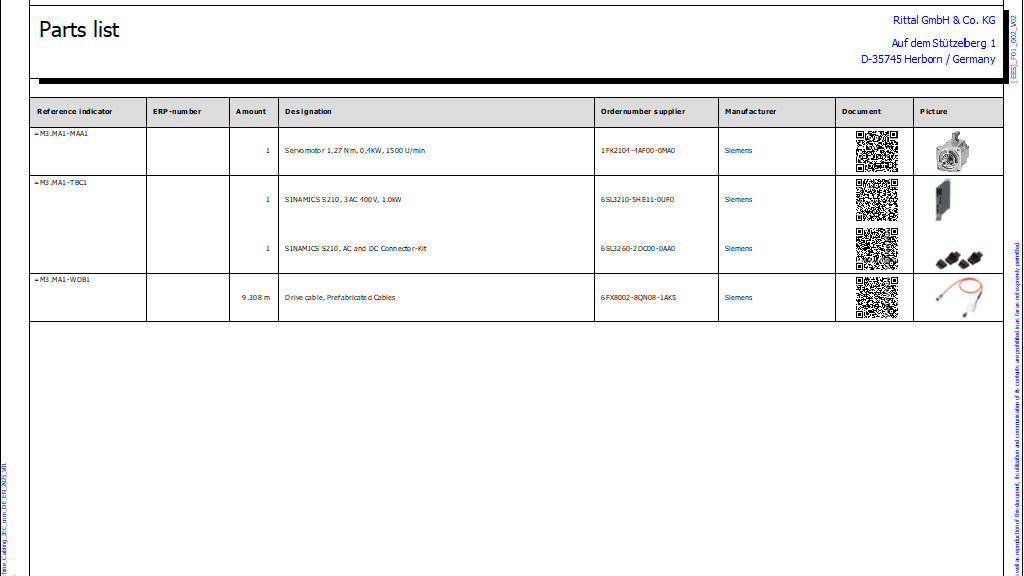

eplan-cable-prod-simplification-bill-of-material

Secure planning

Early coordination between mechanical and electrical engineering allows for good planning, meaning that any “unpleasant surprises” – like those due to errors that are only first recognised in assembly – are a thing of the past.

Faster assembly

The digital twin provides important information for the mounting of the cables. The digital model is also used for coordinated planning. Any changes required at short notice remain the exception and schedules can be easily adhered to.

First glance into Eplan Cable proD

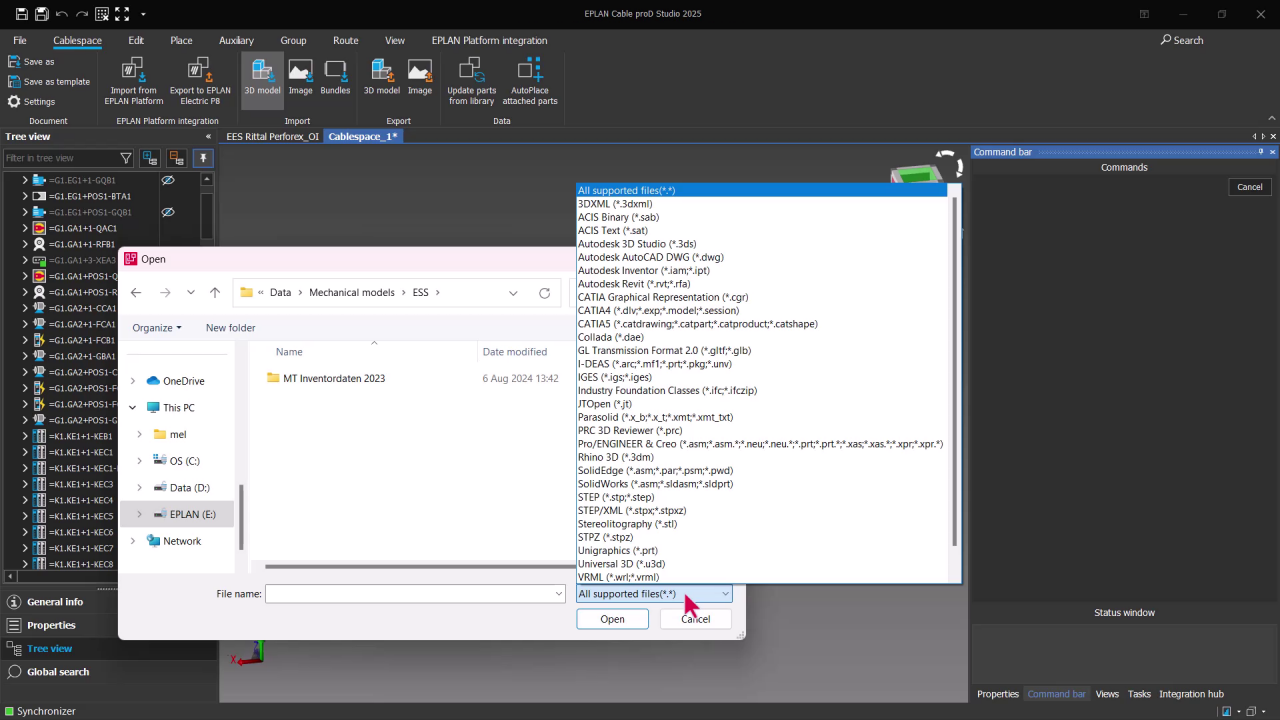

Multi MCAD Interface

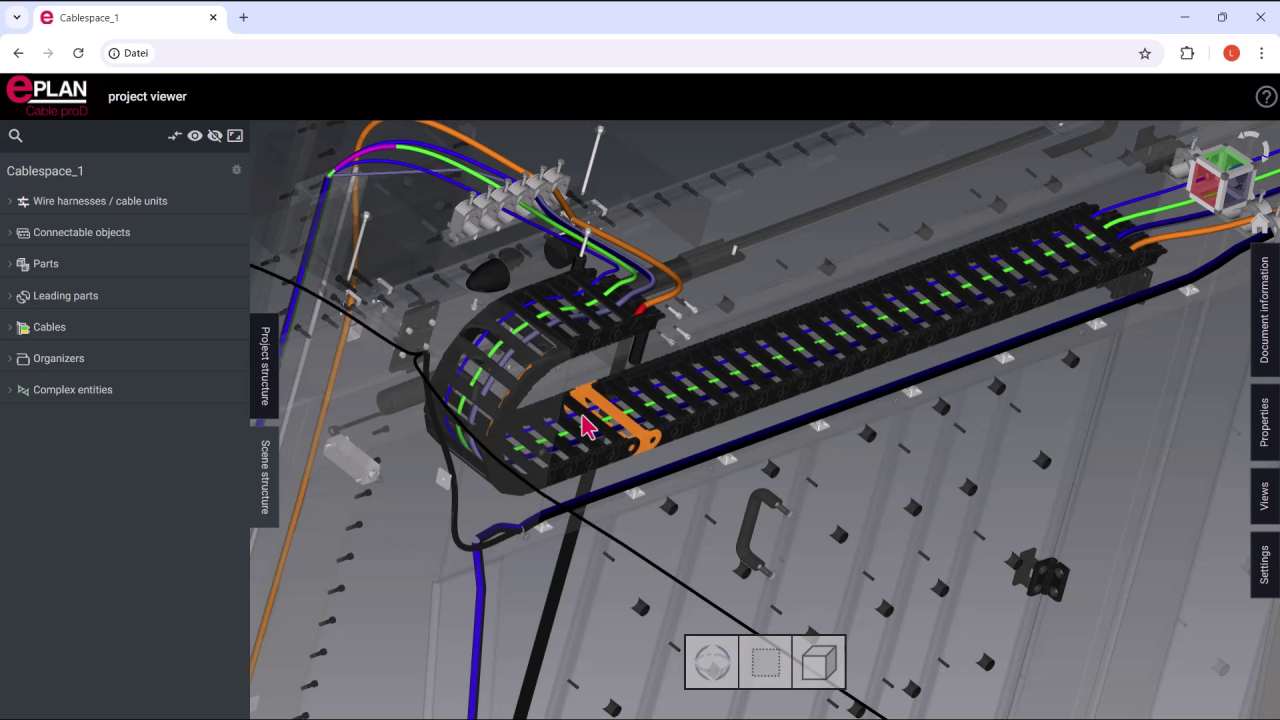

Browser based viewing

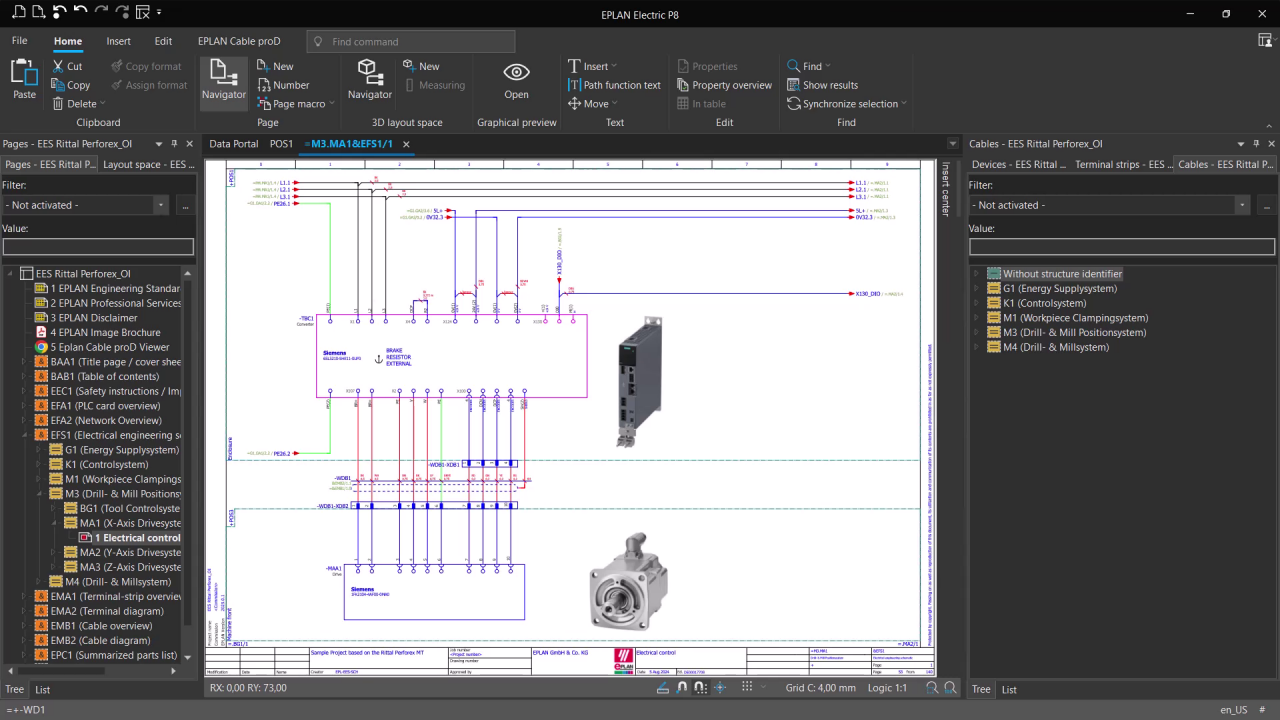

Cable definition in electrical schematic

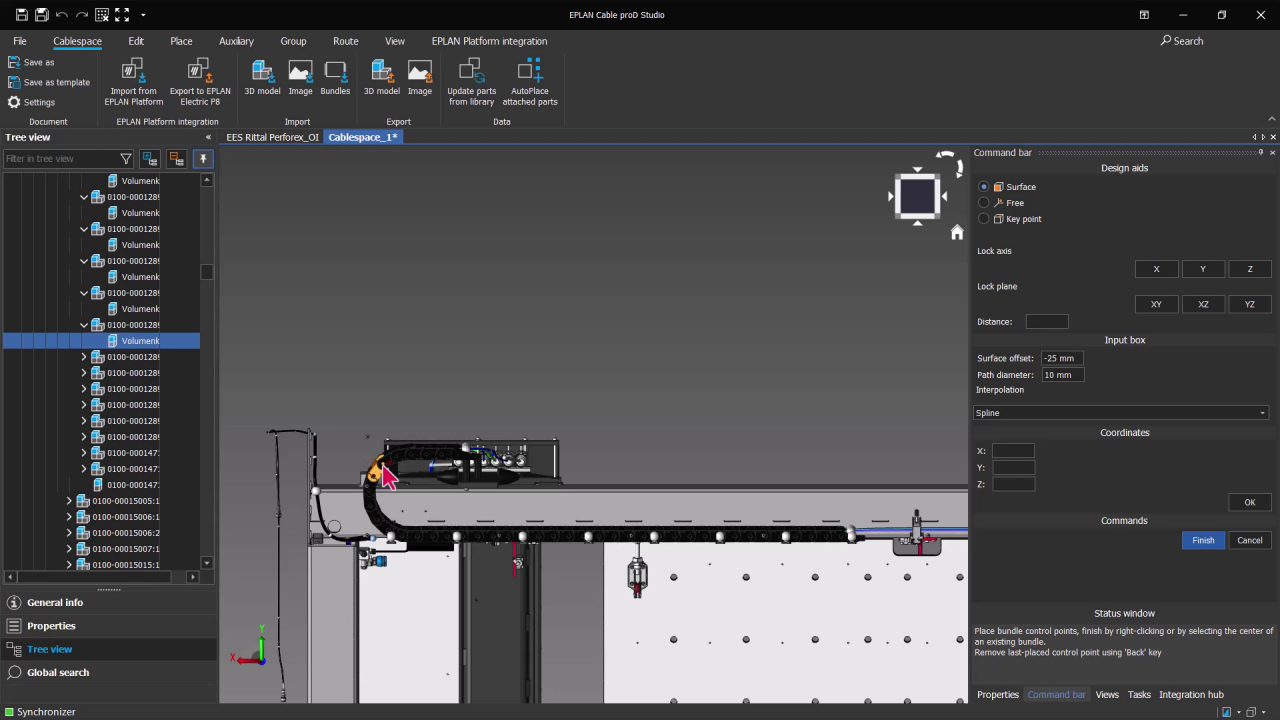

Easy definition of installation paths

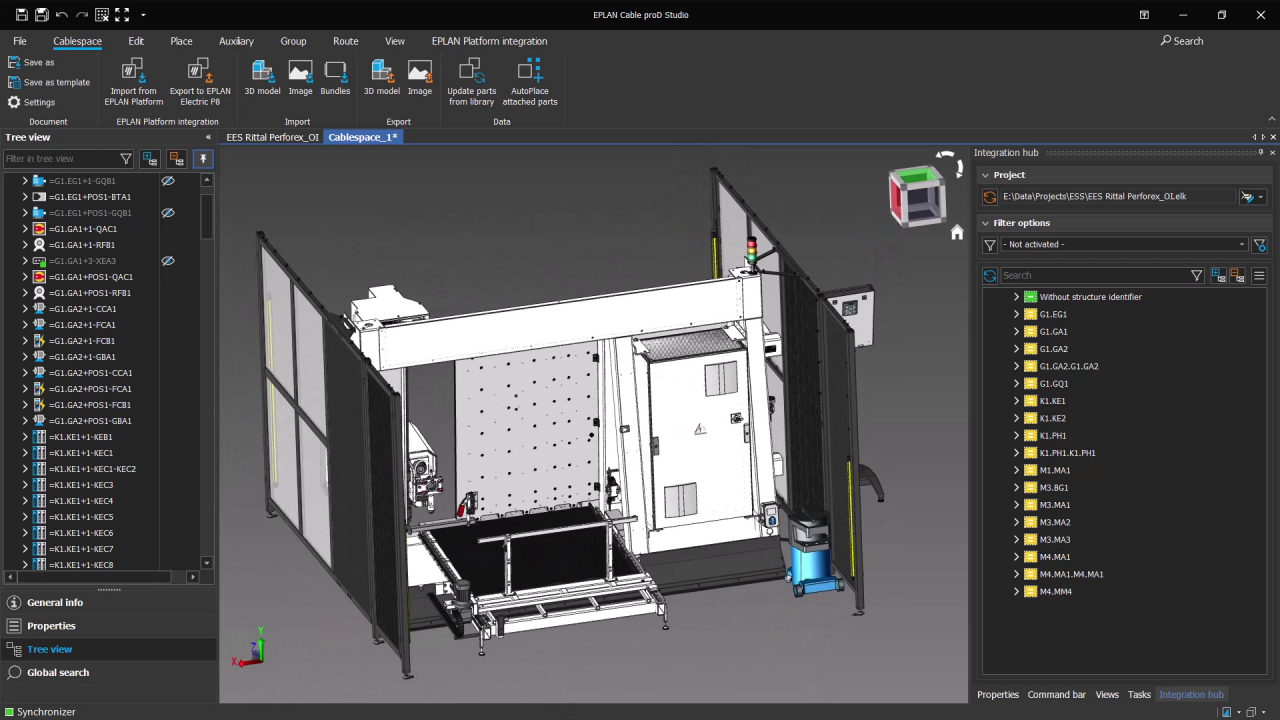

3D machine and control cabinet layout

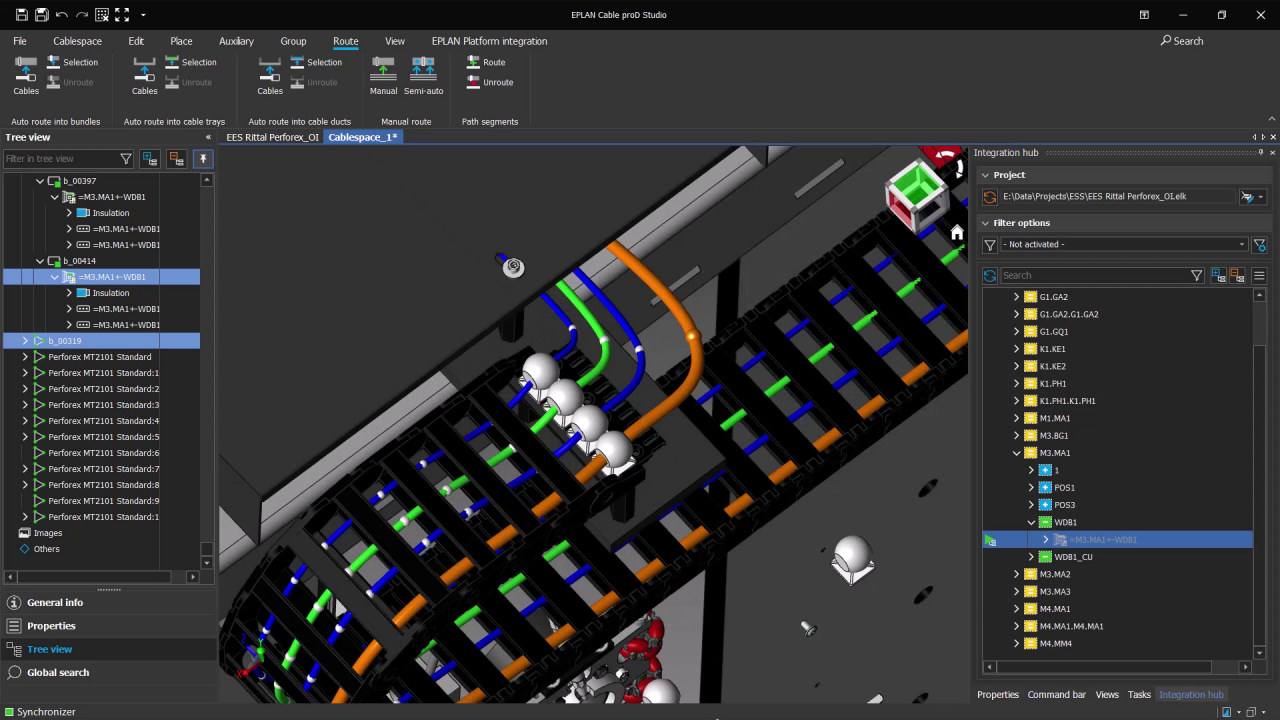

Precise definition of installation paths

Multi MCAD Interface
3D machine and control cabinet layout
Initial point to point routing
Easy definition of installation paths
Precise definition of installation paths
Browser based viewing

That's how our customers benefit from working with Eplan

psb intralogistics
Hahn Automation
Felder Group
Winkler und Dünnebier

"By precisely determining the cable lengths and providing detailed documentation, we save costs and avoid additional design time. Ordering the right cables reduces unnecessary waste and enables immediate installation."

"The system reliably determines the cable lengths, so you don’t have to measure beforehand or make corrections after the fact. And our technicians can work quickly without making any mistakes because the routing paths are displayed in the viewer."

Read the whole story

20 % shorter development process for electrical design with Eplan Cable proD.

“First time right, i.e. the quantity of cables is increased where the cable length is right the first time and not second time still wrong.”

winkler und dünnebier süßwarenmaschinen story

Licenses, runtimes, support and more

Run software on premises or through the Azure cloud
Flexible subscription licenses with runtimes from 12 to 36 months
Single-Licenses as well as Concurrent-Licenses available

Various options for software packages and expanding elements, tailored to your needs
Yearly software version updates, adding new features and workflow support
Broad technical support packages

Request a demo

Getting started with your Eplan software

Eplan is happy to support you in working efficiently with your new software right from the start. We provide you with digital self-services as well as full onboarding packages including templates, trainings and consultancy.

Installation
Training

Data and templates
Engineering

Onboarding

Eplan Platform

Solution for all electrical engineering tasks

The Eplan Platform combines powerful software for a wide variety of tasks, providing the basis for an integrated engineering environment. Each year, we release a new version for you, including new features and functions for many products.

More about Eplan Platform
